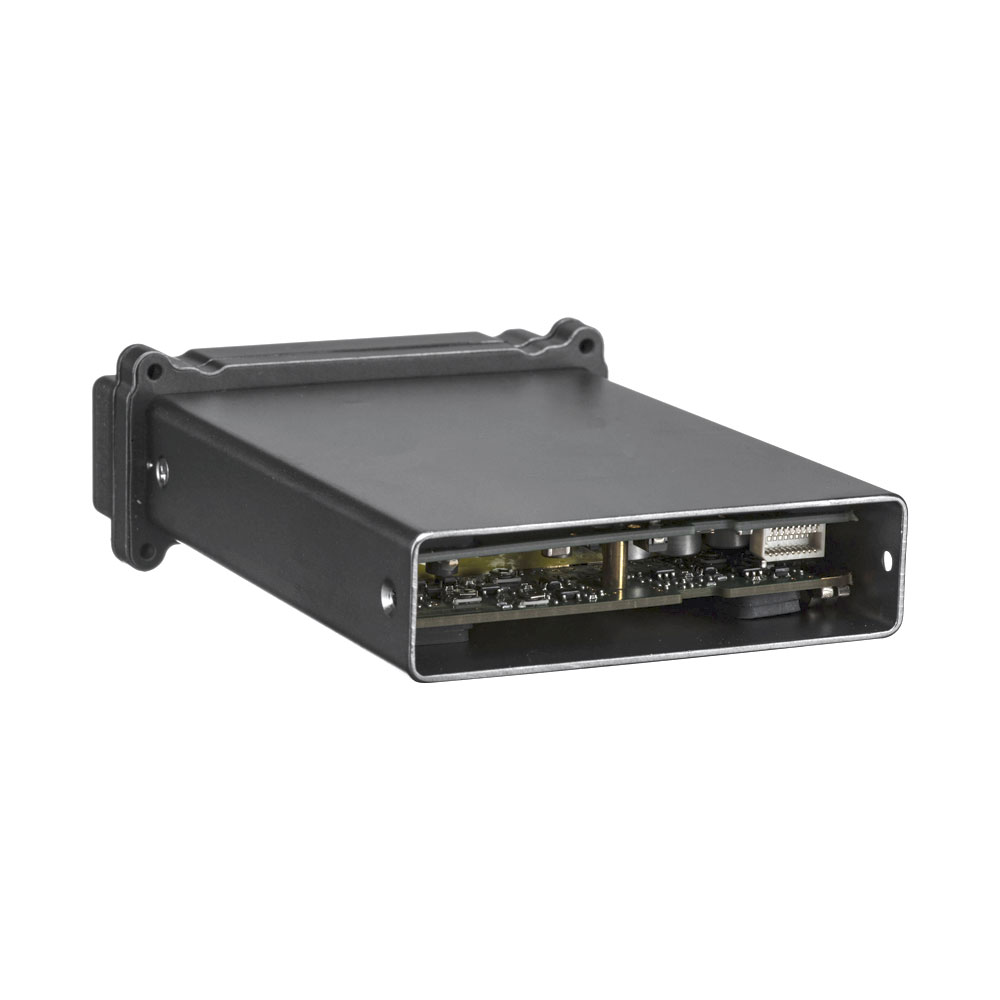

Lectrosonics SRC & SRc5P Dual-Channel Slot Mount ENG Receivers
The SRc5P and SRc consists of two separate receivers built into a single, ultra compact housing with adapters for video camera receiver slots and for stand-alone use. Digital Hybrid Wireless® technology provides superb, compandor-free audio quality and compatibility with other wireless systems. The RF performance is extremely stable over a very wide temperature range, making the receiver perfectly suited to the rough environmental conditions found in field production.
DSP compatibility modes allow the receiver to be used with a variety of Lectrosonics systems, other brands of wireless systems and with Lectrosonics IFB transmitters.
- Fits camera “slots,” Lectrosonics Duopack adapter and Octopack multicoupler, and operates stand-alone with various adapters
- Tunes over a 75 MHz range* (3 blocks)
- Dual receiver design for two channels with phase switched diversity or single channel with ratio diversity operation
- Digital Hybrid Wireless® with compatibility modes for use with other transmitters
- Tracking front-end filters for high performance in tough RF environments
- LCD with RF spectrum scanning
- SmartSquelchTM DSP-controlled, noise based filtering and squelch
- DSP-based pilot tone for squelch control
- IR sync port for quick transmitter setup (LMb, LT, HHa, HMa, & SSM)
- SmartTune operation for quick and confident frequency selection
Frequency ranges -
- A1 - 470-537 MHz or Blocks 470, 19 & 20.
- B1 - 537-614 MHz or Blocks 21, 22 & 23
- B2 - 563-640 MHz or Blocks 22, 23 606 & 24
- C1 - 614-691 MHz or Blocks 24, 25 & 26
Included Accessories
- 1 - Adjustment Tool (Part# 35679)
- 2 - Antennas (Part #AMJ-XX)
- 1 - Quickstart Guide
